SHINWA Stainless Steel Rule Rounded End
ไม้บรรทัดสแตนเลส
Made of SUS420 J2 stainless steel. SUS304 stainless steel for rules over 3m in length.
Fully heat treated, photographically etched gradations.
Hard chrome fnish, unreflective. S-polished fnish, reflective.
|
รหัสสินค้า |
รุ่นสินค้า Scale no. |
Length |
W x Thickness (mm) |
| Inch/Metric Graduations | |||
| 016-200-006 | 301A | 6"/150 | 15 x 0.5 |
| 016-200-012 | 301C | 12"/300 | 25 x 1.0 |
| 016-200-024 | 301E | 24"/600 | 30 x 1.2 |
| 016-200-036 | 301F | 36"/1000 | 35 x 1.5 |
| 016-200-060 | 302G | 60"/1500 | 40 x 2.0 |
| 016-200-078 | 302H | 78"/2000 | 40 x 2.0 |

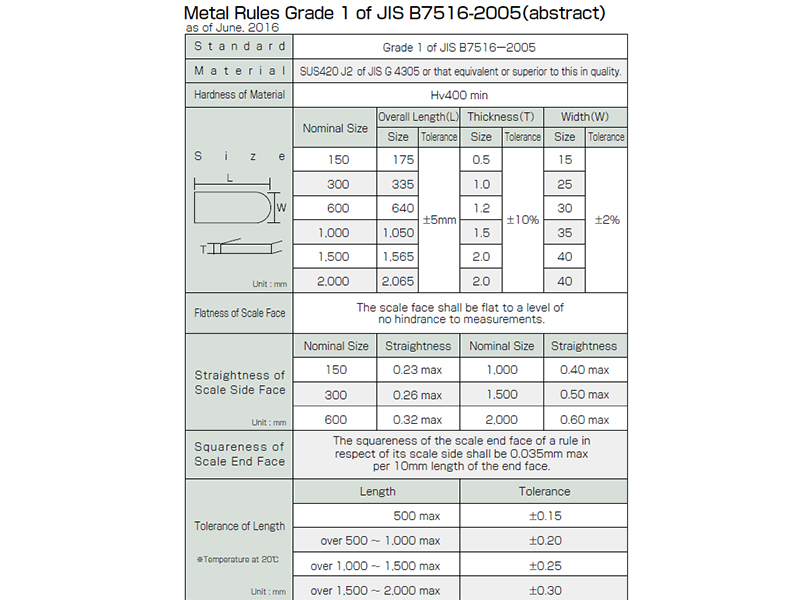

| Metric Graduations (JIS B7516 standard) | |||
| 016-201-0150 | 101A | 150 | 15 x 0.5 |
| 016-201-0300 | 101C | 300 | 25 x 1.0 |
| 016-201-0600 | 101E | 600 | 30 x 1.2 |
| 016-201-1000 | 101F | 1000 | 35 x 1.5 |
| 016-201-1500 | 102G | 1500 | 40 x 2.0 |
| 016-201-2000 | 102H | 2000 | 40 x 2.0 |
| 016-201-3000 | H102I | 3000 | 40 x 3.0 |
| 016-201-4000 | S102J | 4000 | 45 x 3.0 |
